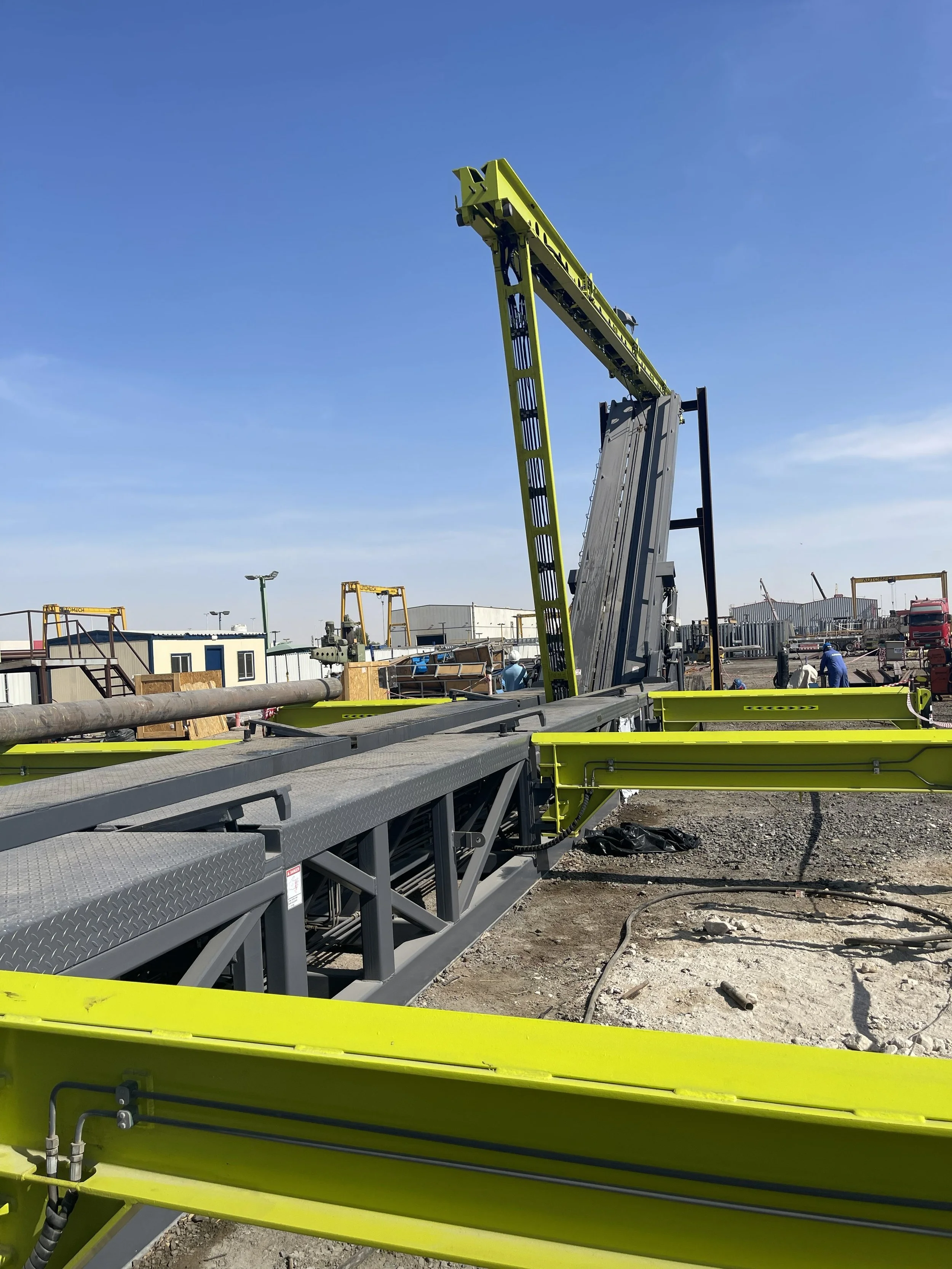

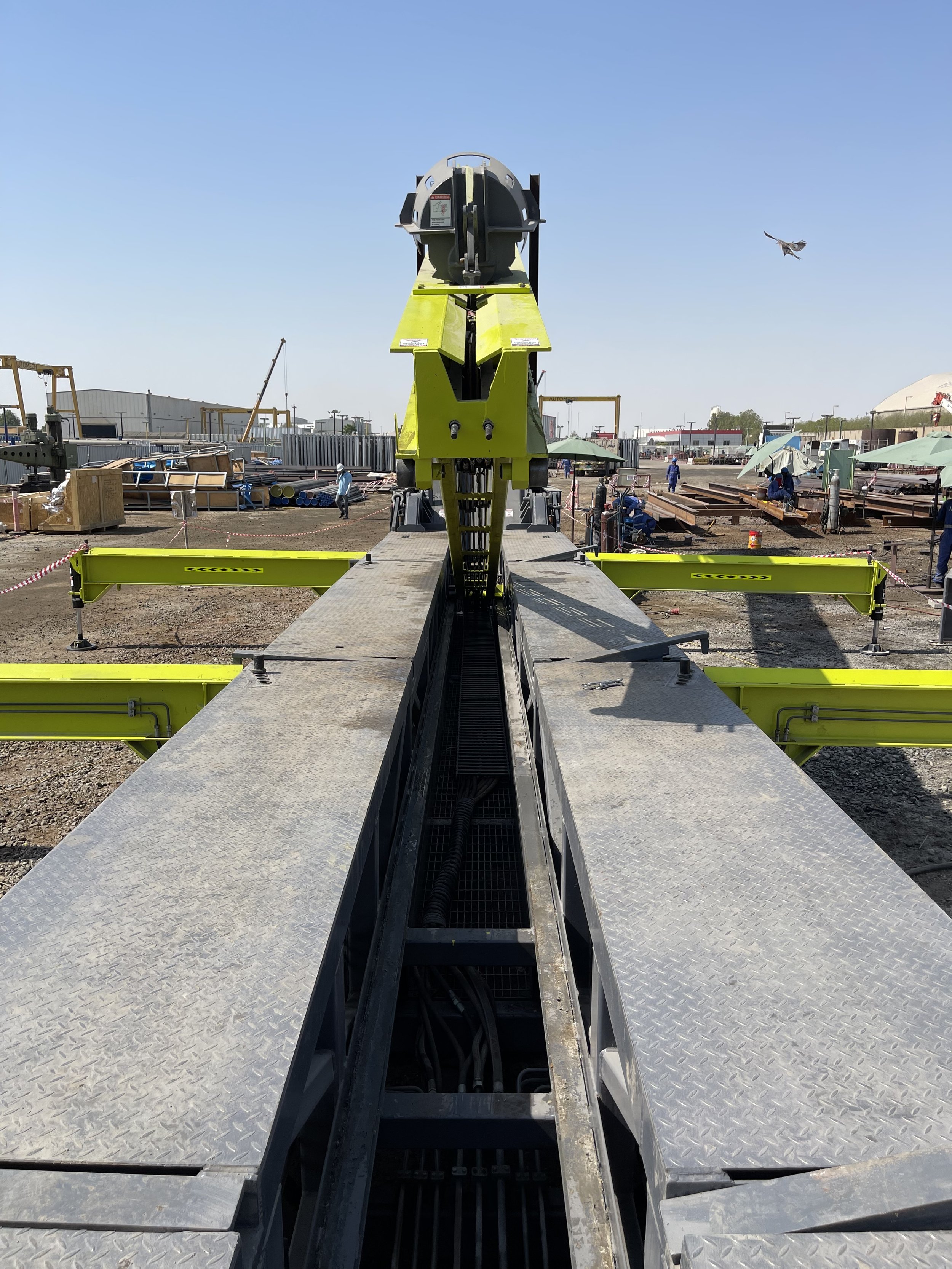

ELEVATING CATWALKS
The engineers at Headwater have been designing catwalks and pipe handling equipment since the earliest developments in automated hydraulic catwalks.
Our catwalks are proven safe and reliable in challenging competitive international drilling markets.
Our designs prioritize simplicity and ease of maintenance for years of trouble free operation
Features:
Drill floor heights from 20ft to 40ft
Tubulars from 2 3/8in to 20in
Tubular weight up to 12,000lb
30,000lb/per side pipe arm capacity
75hp and 100hp models available
Remote control operation
Headwater proprietary dual winch design allows for true secondary retention during elevating sequence
Optional Equipment:
Telescopic V-door allows for easy movement between rigs
Ideal for rental equipment
Hydraulically raised/lowered V-door

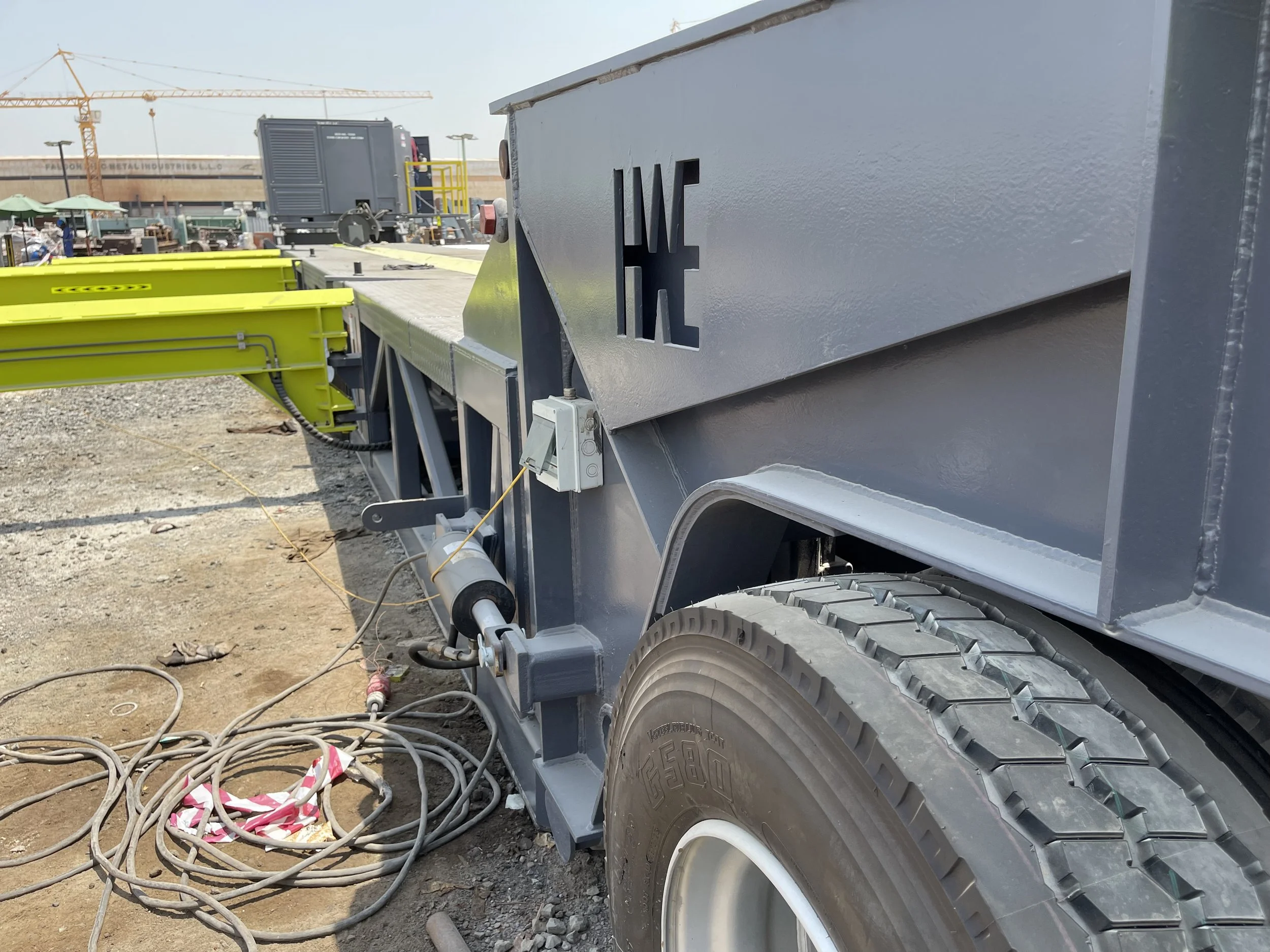

Kingpin and highway wheels
Transport dimensions and weights compliant with North American road restrictions
PLC control system

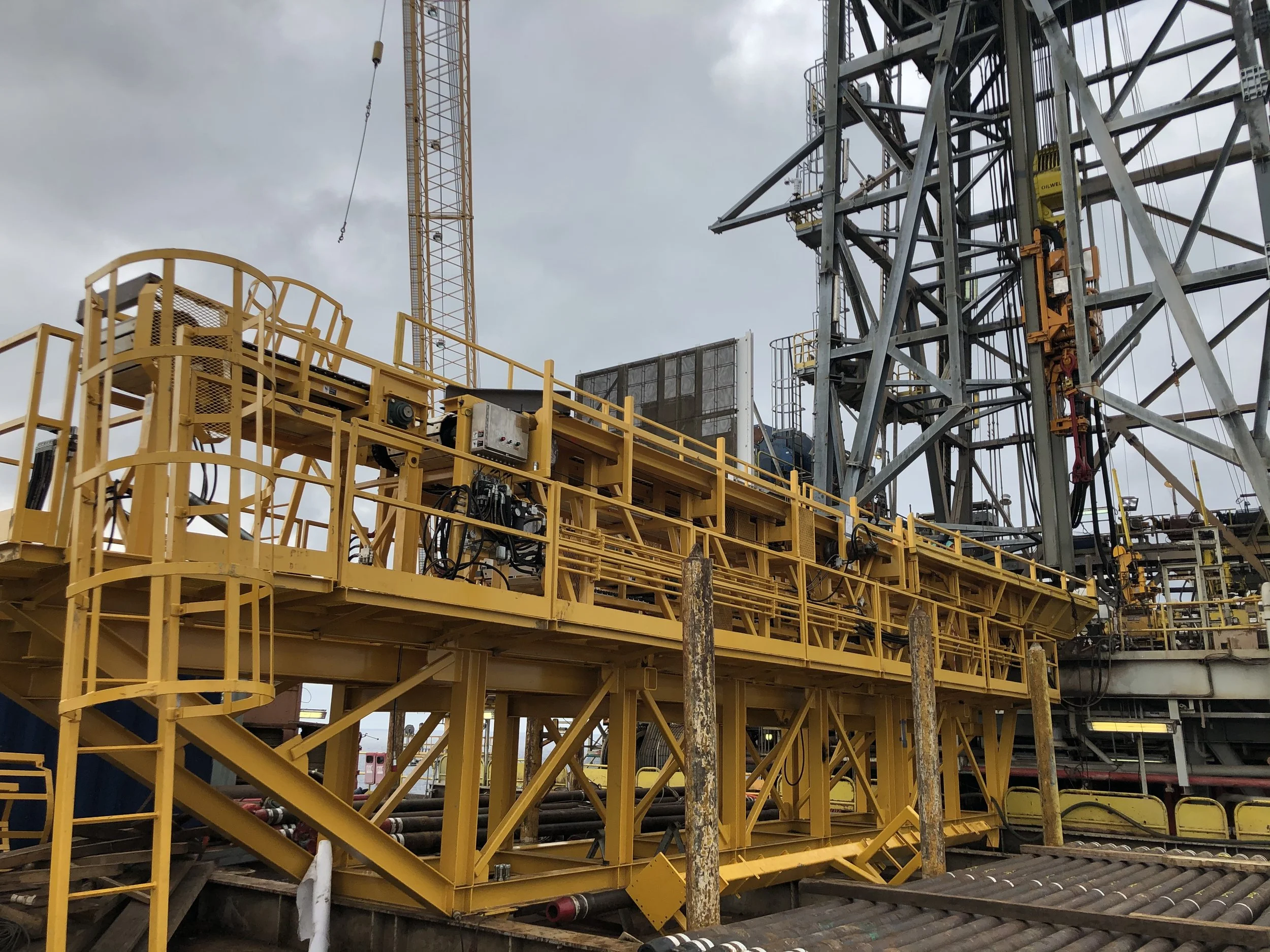

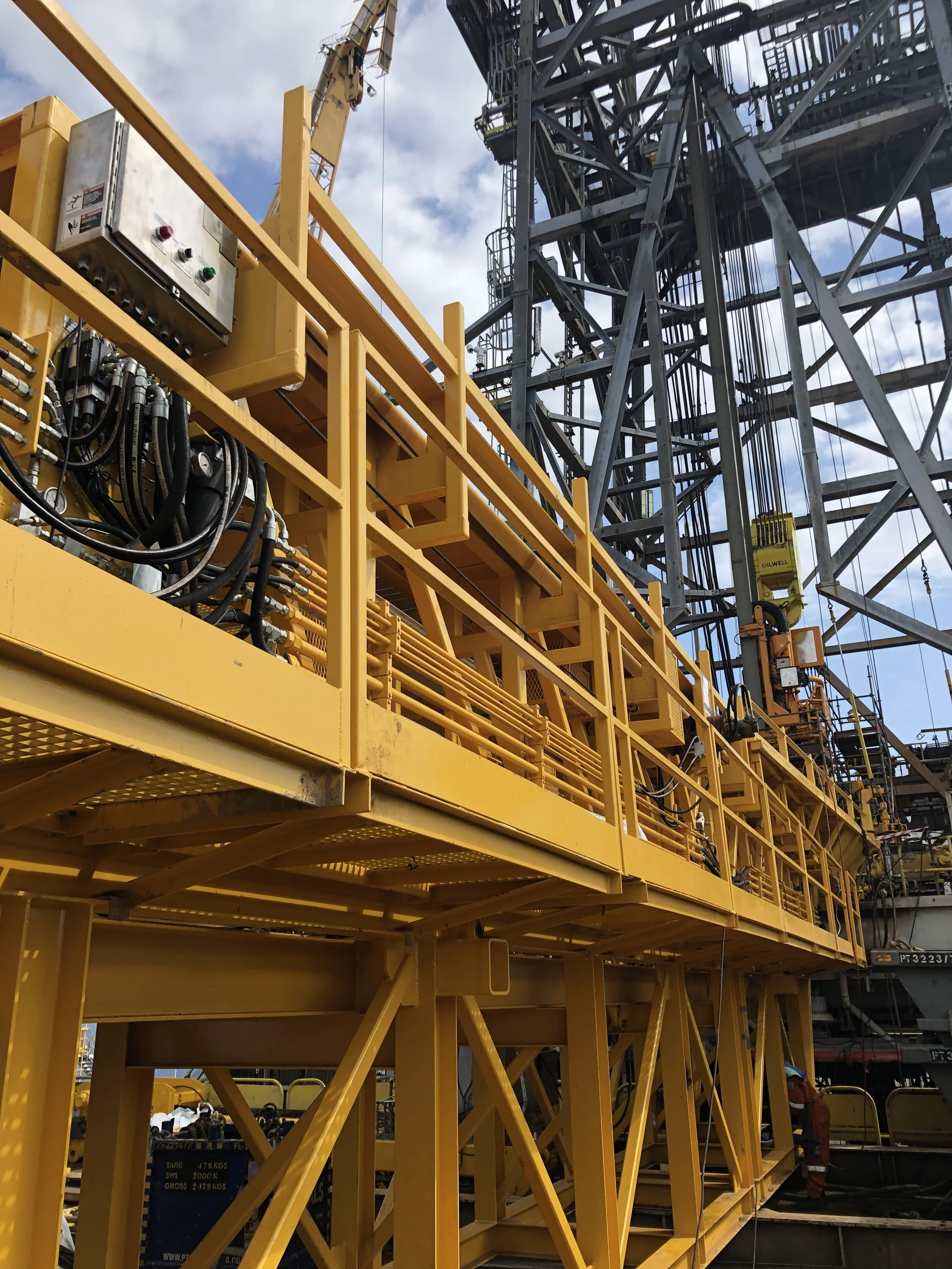

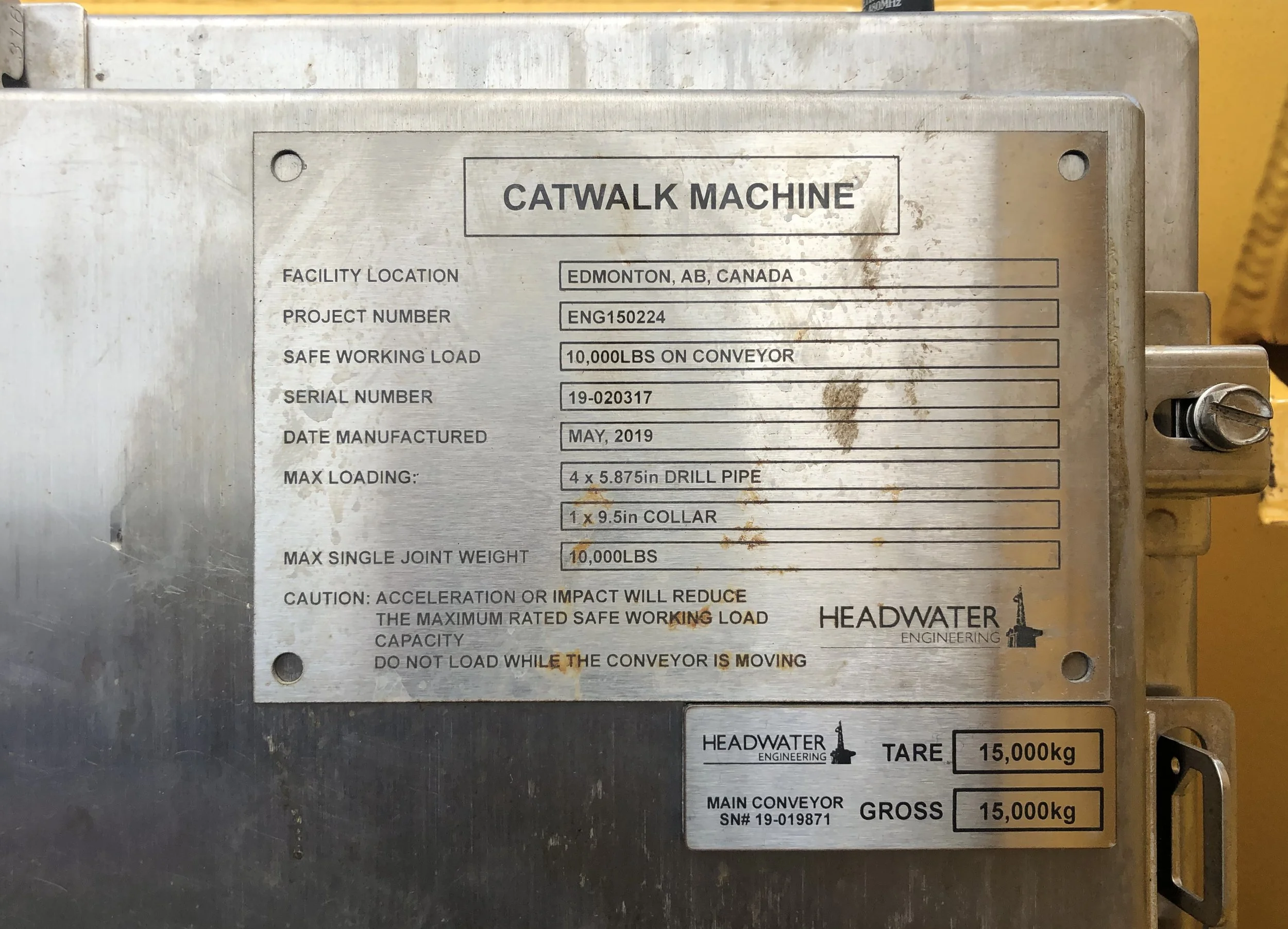

catwalk machine

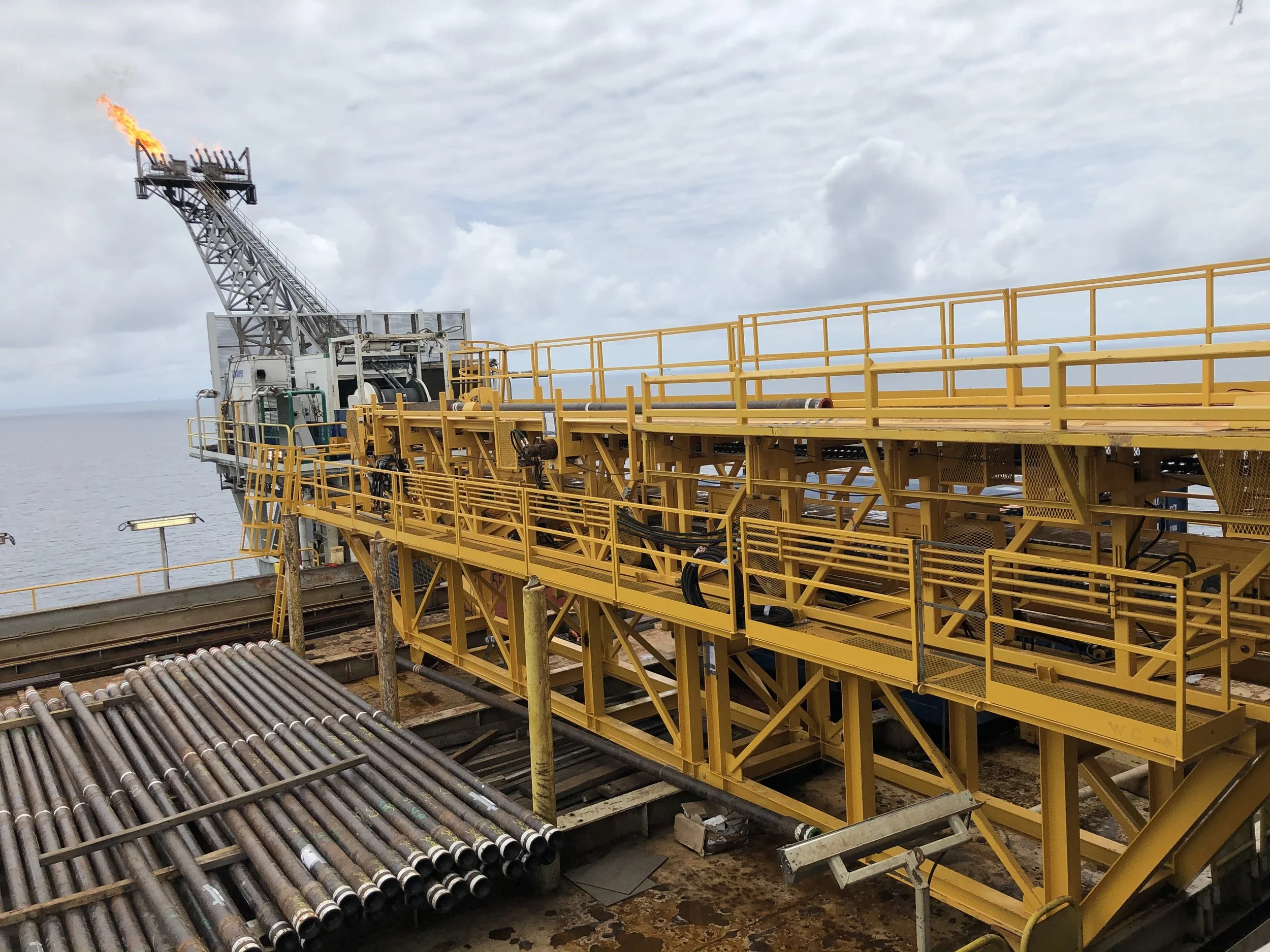

Off-shore operations require special considerations when evaluating pipe handling solutions. Space constraints, pipe deck to drill floor height difference, crane capacities limits, and even international shipping require a thoughtful approach to ensure seamless integration into the rig and operations.
Headwaters unique solution allows delivery of up to 5 joints to be delivered to the rig floor at a time (with another 5 joints ready and waiting in the magazine) allowing men to load up the catwalk machine and then focus on other operations while the rig catches up.
Features:
Up to 10 preloaded joints
Drill floor can be between 3ft and 55ft from pipe deck
Easily disassembles and fits into 40ft sea containers
Maximum section weight 15,000kg
Certified lifting points for dynamic off-shore lifting
Integrated skate system for drill pipe pullback
Pipe kickers and indexers for hands free operation
Wireless remote with hydraulic backup ensuring continuous operation
Fully customizable to suit your rig and operations
